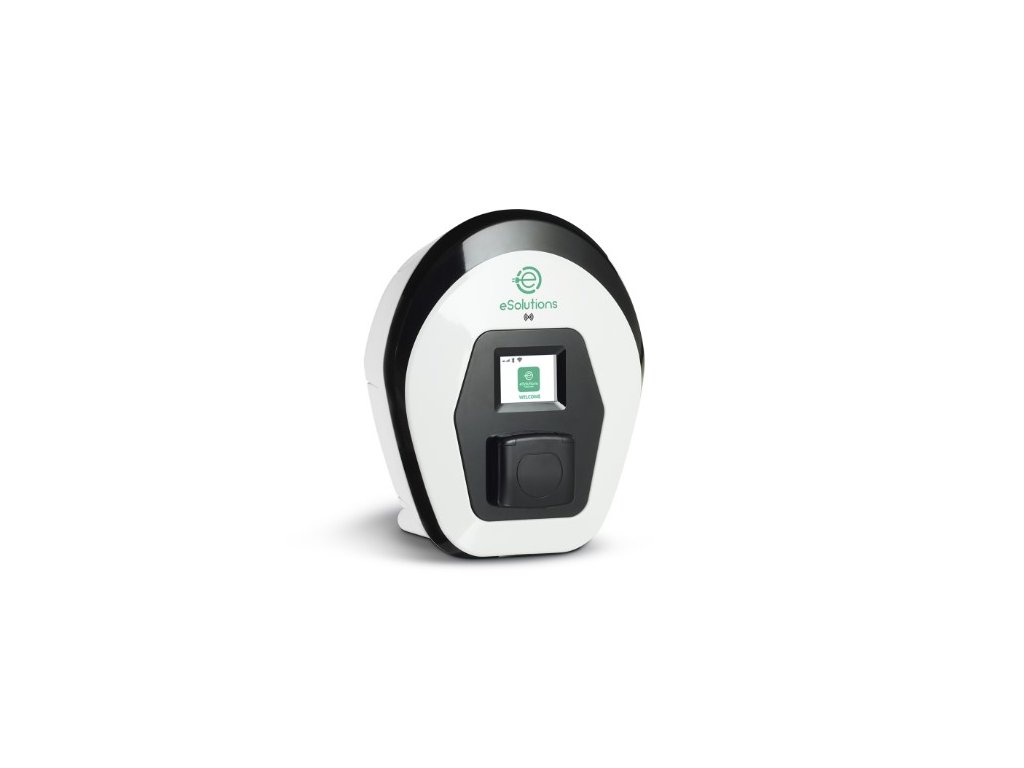

Jeep Avenger, Fiat 600, 500EV Eprowallbox

Charging station for charging hybrid and electric vehicles for added safety and a faster recharge of electric or hybrid vehicle batteries. Can be mounted on a wall or on a post. The installation must be carried out by a professional.
Scalable (1 or 3 phase 32 A max. 22 KW max) charging station with socket/shutter. Requires a mode 3 charging cable to be ordered separately. With App for configuration, monitoring, maintenance.
Dynamic Load Balancing enabled. Sensors optionally available as well as MID certified meters. Home Energy Management Integration possible.
Integration in multiple wallbox set up possible (Master/Slave).
Colour: black and white Weight: ~ 3,8 kg Dimensions: 403x336x190mm
Maximum installation height [m] 2000 a.s.l.
Operating Temperature range [°C] -25°C/+50°C (without direct exposure to sunlight) Humidity Resistance < 95% (non condensing)
Protection degree IP55 Impact protection rating IK08.
Requires the installation of appropriate residual current device by an electrician.
The firmware of the charging station can be updated from remote with assistance from technical support of F2M eSolutions.
Communication supported by Wi-fi, 4G LTE (internet connectivity) RS 485 (Master & Slave, Dynamic Load Balancing, Energy Management Systems) Bluetooth (configuration, maintanance purpose)
OCPP1.6 on board.
Warranty clearance and customer support directly managed by supplier Free2Move eSolutions. Contact details available on www.esolutions.free2move.com
